🔥 EXHAUSTIVE ARTIFACT LISTING: dfir.tips 🔥

account_usage

activity_browser

📁 Location:

Browser	OS	Path
Brave	Windows	%AppDataM\Local\Brave\User Data\Default
Edge	Windows	%userprofile%\AppData\Local\Microsoft\Edge\User Data\Default
Chrome	Windows XP	%userprofile%\Local Settings\Application Data\Google\Chrome\User Data\Default
Chrome	Windows 10	%userprofile%\AppData\Local\Google\Chrome\User Data\Default
Chrome	Linux	/home/%username%/.config/google-chrome/Default
Chrome	Mac OS X	/Users//Library/Application Support/Google/Chrome/Default
Chrome	iOS	\Applications\com.google.chrome.ios\Library\Application Support\Google\Chrome\Default
Chrome	Android	/userdata/data/com.android.chrome/app_chrome/Default
Mozilla	Windows	%APPDATA%\Mozilla\Firefox\Profiles\ \
Mozilla	Linux	~/.mozilla/firefox/
Mozilla	Mac OS X	~/Library/Application Support/Firefox/Profiles/
Vivaldi	Windows	%AppDataM\Local\Vivaldi\User Data\Default

Sources:

firefox profiles

activity_network

logs-anydesk

logs-dns

🩺 Status:

# 01 # Are the DNS debug logs activated ?
# open a console (`cmd.exe`) and run the command
# to check the parameter `dwDebugLevel`. It value must be `00006101`.
dnscmd /Info
reg query HKLM\System\CurrentControlSet\Services\DNS\Parameters
Get-ChildItem -Path HKLM:\System\CurrentControlSet\Services\DNS

📰 Formatting:

📁 Location:

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-DNSServer%4Analytical.etl
%SystemRoot%\System32\Dns\Dns.log

💗 Configuration:

# set the debug mode
dnscmd.exe localhost /Config /LogLevel 0x6101
# set the log file path
dnscmd.exe localhost /Config /LogFilePath "C:\Windows\System32\DNS\dns.log"

logs-firewall

logs-teamviewer

📁 Location:

C:\Program Files (x86)\Teamviewer\Connections_incoming.txt

named-pipes

🩺 Status:

# https://www.microsoft.com/en-gb/download/details.aspx?id=17148
PortQry.exe -n dc01.contoso.com -e 135

# listing the named with dumpin (visual studio tool)
Get-ChildItem -Path "C:\Windows\System32\" -Filter "*.exe" -Recurse -ErrorAction SilentlyContinue | % { $out=$(C:\bin\dumpbin.exe /IMPORTS:rpcrt4.dll $_.VersionInfo.FileName); If($out -like "*RpcStringBindingCompose*"){ Write-Host "[+] Exe creates RPC Binding (potential RPC Client) : $($_.VersionInfo.FileName)"; Write-Output "[+] $($_.VersionInfo.FileName)`n`n $($out|%{"$_`n"})" | Out-File -FilePath EXEs_RpcClients.txt -Append } }

📁 Location:

📰 Formatting:

💗 Configuration:

Sources:
https://csandker.io/2021/02/21/Offensive-Windows-IPC-1-RPC.html
https://csandker.io/2021/02/21/Offensive-Windows-IPC-2-RPC.html
https://csandker.io/2021/02/21/Offensive-Windows-IPC-3-RPC.html
https://www.elastic.co/guide/en/security/current/nullsessionpipe-registry-modification.html

ntfs

NTFS metafiles :

Path: \.\C:[SYSTEM]
Files: $MFT, $MFTMirr, $LogFile, $Volume, $AttrDef, . , $Bitmap, $Boot, $BadClus, $Secure, $UpCase, $Extend
https://en.wikipedia.org/wiki/NTFS#Metafiles : descriptions table of the metaflies

app_exec

amcache

🩺 Status:

📁 Location: C:\Windows\AppCompat\Programs\amcache.hve.

📰 Formatting:

# https://ericzimmerman.github.io/#!index.md # amcacheparser
AmcacheParser.exe -f "samples/123456/Amcache.hve" --csv samples/123456 --csvf samples/123456/123456_DC01_amcache.csv

💗 Configure:

Sources:
ANSSI - CoRIIN_2019 - Analysis AmCache - 07/2019
ANSSI - SANS DFIR AmCache Investigation - 02/2020

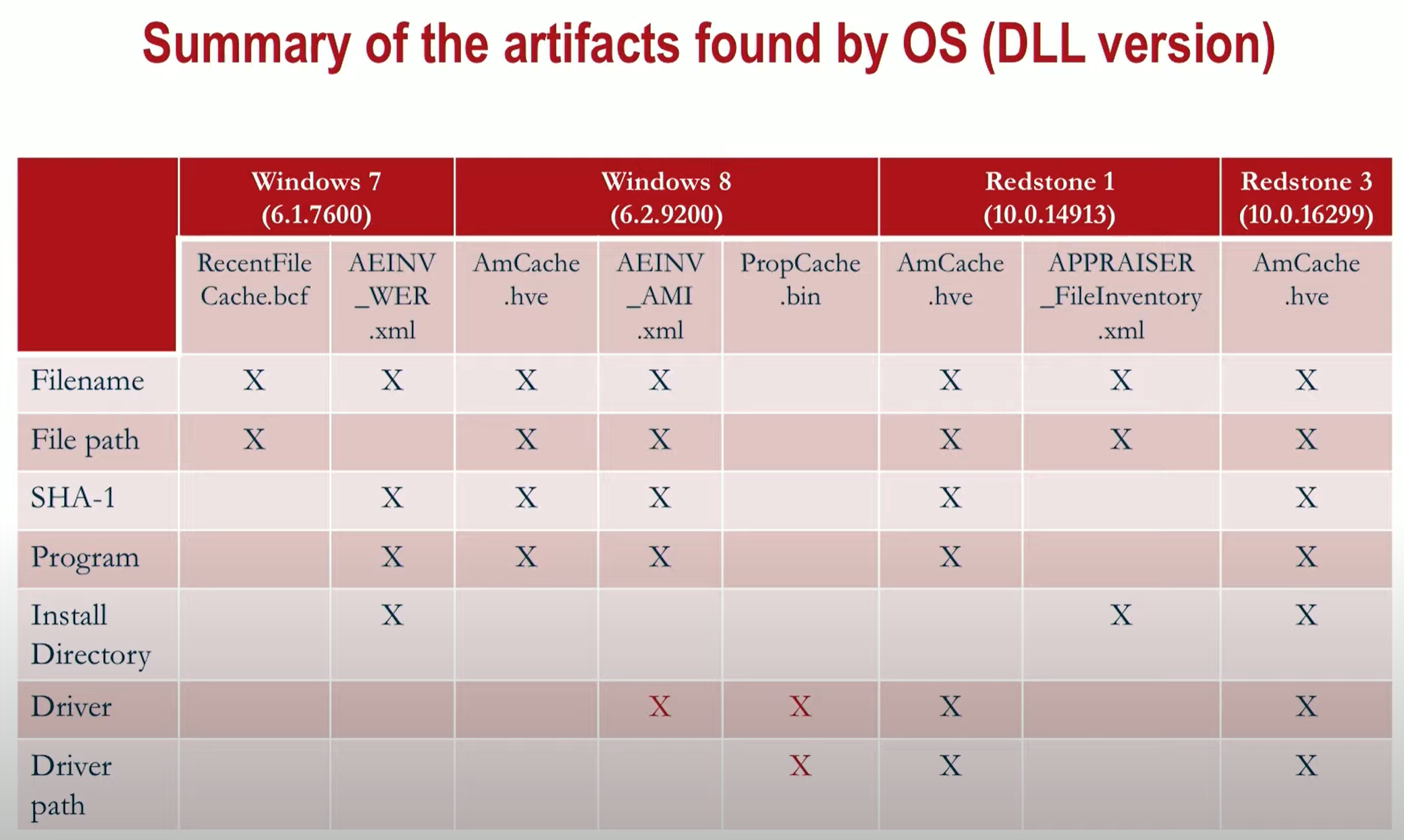

Amcache Artifacts

bam

🩺 Status:

📁 Locations:

📰 Formatting:

💗 Configure:

jumplist

🩺 Status:

📁 Locations:

📰 Formatting:

💗 Configure:

prefetch

🔑 Keypoints:

artifact to prioritize for collection as it can be overwritten during DFIR execs
existence of prefetch does not mean the successful execution
digits in the filename stands for the PE path hash
multiple prefetch for the same PE, can mean different locations (different PE path hash)
exception: PE path hash for ‘svchost’, ‘dllhost’, ‘backgroundtaskhost’, ‘rundll32’ take into account the ‘path + command-line’

🩺 Status:

# prefetch caching enable/disabled in the SYSTEM registry
dir "HKLM:/SYSTEM/CurrentControlSet/Control/Session Manager/Memory Management"
get-itemproperty 'HKLM:/SYSTEM/CurrentControlSet/Control/Session Manager/Memory Management/PrefetchParameters'
# value: PrefetchParameters
# type REG_DWORD
# 0 = Disabled
# 1 = Application launch prefetching enabled
# 2 = Boot prefetching enabled
# 3 = Application launch and boot enabled

📁 Location:C:\Windows\Prefetch

📰 Formatting:

# one shot
pecmd -f E:\C\Windows\prefetch\XXX.EXE-12345678.pf

# timeline V01
pecmd -d C:\Windows\prefetch -q --csvf dc01_prefetch.csv --csv f:\case_01

# timeline V02
pecmd -d C:\Windows\prefetch -k "svchost, dllhost, backgroundtaskhost, rundll32"

💗 Configuration:

shimcache

🔑 Keypoints:

subsystem allowing a program to invoke properties of different OS versions
compatibility modes are called “shims”
data buffered in memory / committed in registry on shutdown and reboot
app is shimmed if rewritten, renamed, moved
existence of InsertFlag does not mean the successful execution (OS behavior variation)
1 SDB / ControlSet

🩺 Status:

📁 Location:

📰 Formatting:

# parse all currentcontrolset
appcompatcacheparser -f C:\Windows\system32\config\SYSTEM --csv g:\execution --csvf appcompatcache.csv

# check the CurrentControlSet
dir HKLM:SYSTEM

💗 Configuration:

srum

🩺 Status:

📁 Locations:

C:\Windows\System32\SRU\SRUDB.dat
HKLM:\SOFTWARE\Microsoft\WindowsNT\CurrentVersion\SRUM\Extensions

📰 Formatting:

💗 Configure:

userassist

🩺 Status:

📁 Locations:

📰 Formatting:

💗 Configure:

del_items_file_exist

mft

🩺 Status:

📁 Location:

Collection:

# kape collection
Set-ExecutionPolicy –ExecutionPolicy Unrestricted
$command = "C:\kape\kape.exe"
$params = "--tsource C:\ --tdest C:\kape\output --tflush --target FileSystem --zip kapeoutput"
Start-Process -FilePath $command -ArgumentList $params –Wait

📰 Formatting:

# convert the artifacts to CSV for timeline explorer
cd C:\kape\Modules\bin
MFTECmd.exe -f $MFT --csv C:\Windows\Temp --csvf mft.csv
MFTECmd.exe -f $Extend\$J --csv C:\Windows\Temp --csvf usrjrnl.csv

💗 Configuration:

recycle_bin

external_device

file_folder_opening

shellbags

Location:

#
USRCLASS.DAT\Local Settings\Software\Microsoft\Windows\Shell\Bags
USRCLASS.DAT\Local Settings\Software\Microsoft\Windows\Shell\BagMRU
NTUSER.DAT\Software\Microsoft\Windows\Shell\BagMRU
NTUSER.DAT\Software\Microsoft\Windows\Shell\Bags

📰 Formatting:

Sources:

windows controlset

system_information

autoruns

🩺 Status:

# https://live.sysinternals.com/autorunsc.exe
autorunsc.exe /accepteula -a * -c -h -s '*' -nobanner

📁 Locations:

HKCU:\Software\Microsoft\Windows NT\CurrentVersion\Windows\Run*
HKCU:\Software\Microsoft\Windows\CurrentVersion\Run*
HKCU:\Software\Microsoft\Windows\CurrentVersion\RunOnce*
HKLM:\Software\Microsoft\Windows\CurrentVersion\Runonce*
HKLM:\Software\Microsoft\Windows\CurrentVersion\policies\Explorer\Run*
HKLM:\Software\Microsoft\Windows\CurrentVersion\Run*

📰 Formatting:

autorunsc.exe /accepteula -a * -c -h -s '*' -nobanner > .csv

💗 Configure:

reg add HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Run /v MyCalc /t REG_SZ /d "C:\windows\syswow64\calc.exe"

temp

# https://github.com/davehull/Kansa/blob/master/Modules/Disk/Get-TempDirListing.ps1
# source-code of 'Get-TempDirListing.ps1'
foreach($userpath in (Get-WmiObject win32_userprofile | Select-Object -ExpandProperty localpath)) {
    if (Test-Path(($userpath + "\AppData\Local\Temp\"))) {
        Get-ChildItem -Force ($userpath + "\AppData\Local\Temp\*") | Select-Object FullName, CreationTimeUtc, LastAccessTimeUtc, LastWriteTimeUtc
    }
}

# GUI visualization
.\Get-TempDirListing.ps1 | Out-GridView

🩺💗📰📁

logs

🩺 Status:

📁 Locations:

# all Windows Versions

%SystemRoot%\System32\winevt\logs\Application.evtx
%SystemRoot%\System32\winevt\logs\Security.evtx
%SystemRoot%\System32\winevt\logs\System.evtx
%SystemRoot%\System32\winevt\logs\Windows Powershell.evtx

# https://github.com/davehull/Kansa/blob/master/Modules/Log/Get-LogWinEvent.ps1
.\Modules\Log\Get-LogWinEvent.ps1 security | Out-GridView

📰 Formatting:

# 01 # https://ericzimmerman.github.io/#!index.md # evtxecmd
EvtxECmd.exe -f "samples/123456/Microsoft-Windows-WMI-Activity%4Operational.evtx" --csv samples/123456 --csvf samples/123456/123456_DC01_evtx_wmi.csv

# 02 # Converting EVTX JSON or XML to CSV : [github.com/omerbenamram/EVTX](https://github.com/omerbenamram/evtx)

💗 Configure:

logs-ps

🩺 Status:

📁 Location:

📰 Formatting:

💗 Configuration:

logs-svcs

🩺 Status:

📁 Location:

📰 Formatting:

# https://github.com/davehull/Kansa/blob/master/Analysis/Get-LogparserStack.ps1
.\Get-LogparserStack.ps1 -FilePattern *SvcAll.csv -Delimiter "," -Direction asc -OutFile svcAll_stack.csv
# Answer these questions as follows:
# Enter the field to pass to COUNT(): Name
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: Name
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: DisplayName
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: PathName
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: quit

💗 Configuration:

logs-wmi

🩺 Status:

📁 Location:

📰 Formatting:

# OPTION 1 : https://github.com/davehull/Kansa/blob/master/Modules/Process/Get-ProcsWMI.ps1
.\Modules\Process\Get-ProcsWMI.ps1 | Out-GridView

# OPTION 2 : https://github.com/davehull/Kansa/blob/master/Analysis/Get-LogparserStack.ps1
.\Get-LogparserStack.ps1 -FilePattern *WmiEvtFilter.csv -Delimiter "," -Direction asc -OutFile wmiEvtFilter_stack.csv
# Answer these questions as follows:
# Enter the field to pass to COUNT(): Name
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: Name
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: Query
# Enter the fields you want to GROUP BY, one per line. Enter "quit" when finished: quit

💗 Configuration:

mplogs

🩺 Status:

📁 Location:

📰 Formatting:

💗 Configuration:

ntds-dit

# file present on DCs
ls %SystemRoot%\NTDS\Ntds.dit

powershell-history

🩺 Status:

# https://learn.microsoft.com/en-us/powershell/module/psreadline/set-psreadlineoption?view=powershell-7.4&viewFallbackFrom=powershell-6
Get-PSReadLineOption

📁 Location:

# path
$env:APPDATA\Roaming\Microsoft\Windows\PowerShell\PSReadLine\$($Host.Name)_history.txt

💗 Configuration:

# enable / disable history
Set-PSReadlineOption -HistorySaveStyle SaveNothing

reg

🔑 Keypoints:

There is 1 ‘NTUSER.DAT’ and 1 ‘UsrClass.dat’ / USER

📁 Location:

Hive	System Path
HKLM\SYSTEM	%SystemRoot%\system32\config\system
HKLM\SAM	%SystemRoot%\system32\config\sam
HKLM\SECURITY	%SystemRoot%\system32\config\security
HKLM\SOFTWARE	%SystemRoot%\system32\config\software
HKLM\DEFAULT	%SystemRoot%\system32\config\default
HKCU\UserProfile	%UserProfile%\NTuser.dat
HKCU\Software\Classes	%UserProfile%\AppData\Local\Microsoft\Windows\UsrClass.dat

[retrieve the transaction logs

andrafortunea

python](https://andreafortuna.org/2021/02/06/windows-registry-transaction-logs-in-forensic-analysis/)

[registry transaction logs

goocle cloud](https://cloud.google.com/blog/topics/threat-intelligence/digging-up-the-past-windows-registry-forensics-revisited/?hl=en)

regripper

credits: hexacorn
Confirming the asset & timezone:

Hive	Plugin
system	compname
system	timezone

Interesting findings:

What is it ? In a forensics, the table below tend to help identify interesting regripper plugins to run on which evidences.

Note: refer to heaxacorn for the full listing/mapping of regripper plugins to hives.

Note: Run the plugins for ntuser.dat and userclass.dat, as many as the number of evidences (two per users) collected.

# Onliner to unarchive all ntuser_<username>.dat.zip collected to ntuser_<username>.dat
for i in `ls ntuser_*.dat.zip`; do unzip $i > `echo $i | sed 's/\.[^.]*$//'`; done

# Loop example to run the autoruns plugins on all ntuser.dat, here renamed to ntuser_<username>.dat when collected
for i in `ls ntuser_*.dat`; do regripper -r $i -p autoruns; done

# Loop example to run the clsid plugins on all usrclass.dat, here renamed to usrclass_<username>.dat when collected
for i in `ls usrclass_*.dat`; do regripper -r $i -p clsid; done

Tactic	Hive	RegRipper Plugin	Powershell Live
INIT	system	usbstore	dir HKLM:\SYSTEM\ControlSet001\Enum\USBSTOR
INIT			dir “HKCU:\Software\Microsoft\Internet Explorer\TypedURLs”, dir “HKCU:\Software\Microsoft\Internet Explorer\Download”
LAT MOV	ntuser.dat	rdphint
PERSIST	ntuser.dat	startup	(ProfilePath)\Start Menu\Programs\Startup
PERSIST	ntuser.dat	autoruns	dir HKCU:\Software\Microsoft\Windows NT\CurrentVersion\Windows\Run, dir HKCU:\Software\Microsoft\Windows\CurrentVersion\Run, dir HKCU:\Software\Microsoft\Windows\CurrentVersion\RunOnce*
PERSIST	XXX	autoruns	dir HKLM:\Software\Microsoft\Windows\CurrentVersion\Runonce, dir HKLM:\Software\Microsoft\Windows\CurrentVersion\policies\Explorer\Run, dir HKLM:\Software\Microsoft\Windows\CurrentVersion\Run*
PERSIST	software	run	dir “HKCU:\Software\Microsoft\Windows\CurrentVersion\Search\JumpList*”
EXEC	ntuser.dat	officedocs
EXEC	ntuser.dat	officedocs2010
EXEC	ntuser.dat	recentdocs
EXEC	ntuser.dat	run	dir HKCU:\Software\Microsoft\Windows\CurrentVersion\Explorer\RunMRU, dir HKCU:\Software\Microsoft\Windows\CurrentVersion\Explorer\UserAssist
	usrclass.dat	clsid
EXEC	usrclass.dat	cmd_shell_u
	software	clsid
EXEC	software	cmd_shell
	software	dcom
	software	inprocserver
EXEC	system	prefetch
	all	sizes
			dir HKLM:\SYSTEM\ControlSet001\Services\Tcpip\Parameters\Interfaces*

reg-history

credits: fireeye

What is it ? System and registry hives can be tampered to hide compromise / make the forensics harder. The table below lists the evidences to figure out if anti-forensics happened.

Evidence Type	User hives	System hives
Registry transaction logs (.LOG)	%UserProfile% %UserProfile%\AppData\Local\Microsoft\Windows	%SystemRoot%\system32\config\
Transactional registry transaction logs (.TxR)	%UserProfile% %UserProfile%\AppData\Local\Microsoft\Windows	%SystemRoot%\System32\config\TxR
Deleted entries in registry hives	unallocated cells
Backup system hives (REGBACK)	%SystemRoot%\System32\config\RegBack
Hives backed up with System Restore	\\.\"System Volume Information”

reg-extra

Extra: Live collection of a locked hive :

# useful when having remote access but system handle do not allow read/copy/download
# batch: registry hive live collection
reg save HKLM\SYSTEM system.reg

Extra: live browsing a hive in CLI : ```powershell
powershell: listing the registry hives

Get-ItemProperty HKLM:\SYSTEM\CurrentControlSet\Control\hivelist\

powershell: browsing a hive with the interpreter

cd HKLM:

## <a name='wer'></a>wer
### <a name='wer-persist'></a>wer-persist
```powershell
# 2024-02-12 / Persistence / POC
# https://github.com/0xHossam/WERPersistence/tree/main
C:\ProgramData\Microsoft\Windows\WER\ReportQueue\*.wer

# 2023-01-04 / Execution / pupy RAT / DLL side-loading / APT33
# https://www.bleepingcomputer.com/news/security/hackers-abuse-windows-error-reporting-tool-to-deploy-malware/
werfault.dll

lsass-shtinkering

Keypoints:

Artifact / Event Log
- Event ID 1000 is generated under “Windows Logs\Application” * Event doesn’t specify the sender process
- Artifact / Dump File:
  - Dump files will be written to %LocalAppData%\CrashDumps * For processes running as “NT AUTHORITY\SYSTEM”, the path is:

Location:

C:\Windows\system32\config\systemprofile\AppData\Local\CrashDumps

Sources: -DEFCON 30 - lsass shtinkering | talk) -DEFCON 30 - lsass shtinkering | slides

account_usage

activity_browser

activity_network

logs-anydesk

logs-dns

logs-firewall

logs-teamviewer

named-pipes

ntfs

app_exec

amcache

bam

jumplist

prefetch

shimcache

srum

userassist

del_items_file_exist

mft

recycle_bin

external_device

file_folder_opening

shellbags

system_information

autoruns

temp

logs

logs-ps

logs-svcs

logs-wmi

mplogs

ntds-dit

powershell-history

reg

regripper

reg-history

reg-extra

powershell: listing the registry hives

powershell: browsing a hive with the interpreter

lsass-shtinkering
