edr / xdr

• defeva
• enum
  • win-enum
  • lin-enum
  • lin-ps
• xql
  • get-pub-ip
  • get-flow
  • get-flow-wan
  • get-flow-lan
  • get-flow-smb
  • get-flow-origin
  • get-data-uploads
  • get-sensitive-services
  • get-registry-activity
  • get-creds
• xql-4-ir
  • find-data-leak
  • find-rogue-auths
  • find-rogue-schtasks
  • find-rogue-schtasks2
  • find-rogue-dll
  • find-wpad-attack

defeva

Cortex XDR version	OS
v7	linux
v7.9.1	linux 🚧

enum

win-enum

• enum xdr on windows OS:

  cd "C:\Program Files\Palo Alto Networks\Traps"
  ./cytool.exe




• check the DLL cryptsvc:

  dir HKLM:\SYSTEM\CurrentControlSet\Services\CryptSvc


lin-enum

• editor user guide
• enum xdr on linux OS:

  cat /opt/trap/version.txt


lin-ps

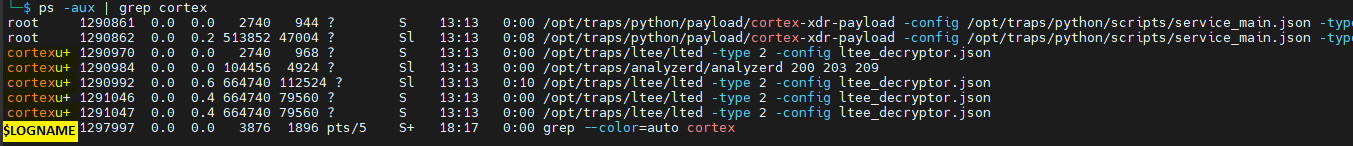

• palo xdr processes:

  ps -aux | grep cortex




lin-files

• palo xdr 7.9.1 file ltee_decryptor.json:

  jq /opt/traps/ltee/lted/ltee_ecryptor.json




• palo xdr 7.9.1 file service_main.json:

  jq /opt/traps/python/scripts/service_main.json




xql

get-pub-ip

dataset = endpoints
| filter last_origin_ip = "8.8.8.8"

get-flow

List of local open sessions sorted by descendant hits for PC001

preset = network_story
| filter agent_hostname = "PC001" and action_local_ip != null
| comp count(_time) as hits by action_local_ip, action_local_port, action_remote_ip
| sort desc hits

get-flow-wan

Network activity with the Internet for PC001:

dataset = xdr_data
| alter privrange1 = incidr(action_remote_ip,"10.0.0.0/8")
| alter privrange2 = incidr(action_remote_ip,"172.16.0.0/12")
| alter privrange3 = incidr(action_remote_ip,"192.168.0.0/16")
| filter agent_hostname = " PC001" AND action_remote_ip != null AND privrange1 != true AND privrange2 != true AND privrange3 != true
| comp count(_time) as hits by action_local_ip, action_local_port, action_remote_ip
| sort desc hits

get-flow-lan

Network activity over the LAN for PC001:

dataset = xdr_data
| alter privrange1 = incidr(action_remote_ip,"10.0.0.0/8")
| alter privrange2 = incidr(action_remote_ip,"172.16.0.0/12")
| alter privrange3 = incidr(action_remote_ip,"192.168.0.0/16")
| filter agent_hostname = " PC001" AND action_remote_ip != null AND (privrange1 = true OR privrange2 = true OR privrange3 = true)
| comp count(_time) as hits by action_local_ip, action_local_port, action_remote_ip
| sort desc hits

get-flow-smb

Spot SMB connections for IP 10.0.0.1

preset = network_story
| filter action_local_ip = "10.0.0.1" and action_remote_port = 445
| comp count(_time) as hits by action_remote_ip
| sort desc hits

get-flow-origin

List network sessions with processes for a set of endpoints:

preset=network_story
| filter agent_hostname in ("PC001","PC002","PC003")
| comp count(_time) as hits by agent_hostname, action_local_ip, action_local_port, action_remote_ip
| sort desc hits
| fields _time, agent_hostname, action_local_port, action_remote_ip, action_remote_port, dst_actor_process_image_name, dst_actor_process_image_path

get-data-uploads

Top uploads by remote port:

preset = network_story
| filter agent_hostname = "PC001" AND action_remote_ip != null
| comp sum(action_total_upload) as uploads by agent_hostname, action_local_ip, action_remote_ip, action_remote_port, actor_process_command_line
| alter MB_uploads = divide(uploads, 1048576)
| fields MB_uploads, agent_hostname, action_local_ip, action_remote_ip, action_remote_port, actor_process_command_line
| sort desc MB_uploads

get-sensitive-services

Public sensitive services exposed in the Internet:

dataset = xdr_data
| alter privrange1 = incidr(action_remote_ip,"10.0.0.0/8")
| alter privrange2 = incidr(action_remote_ip,"172.16.0.0/12")
| alter privrange3 = incidr(action_remote_ip,"192.168.0.0/16")
| filter agent_hostname != null AND action_remote_ip != null AND privrange1 != true AND privrange2 != true AND privrange3 != true
| filter action_local_port IN (21,23,88,135,445,512,514,2701,2702,3283,3389,4444,5800,5900,5938,5985,5986)
| comp count(_time) as hits by agent_hostname, action_local_ip, action_local_port, action_remote_ip
| sort desc hits

get-registry-activity

Get actions over the windows registry for PC001:

preset = xdr_registry | filter agent_hostname = "PC001"

get-creds

• Looking for the process executions:

  dataset = xdr_data
  | filter event_type = ENUM.PROCESS and action_process_image_command_line contains "kubectl" and  action_process_image_command_line contains $_KEYWORD_$
  | comp count(agent_hostname) as hits by agent_hostname, agent_ip_addresses, action_process_image_command_line, agent_version, host_metadata_domain


loots	$KEYWORD$
Kubernetes	“kubectl config set-credentials”
Container Registry X	“docker login”
Container Registry Azure	“azucr.”
DB sysdba	“sysdba”
DB x	“sqlplus -s “
password	” -pass”
password	” -p “
password	” -cred”
psexec	“psexec “

• Looking for the Windows registry (T1552.002):

  preset = xdr_registry
  | alter privrange = incidr( agent_ip_addresses,"10.0.0.0/24")
  | filter privrange = true and action_registry_key_name contains "Password"


xql-4-ir

TO TEST / QUERIES FROM PALO WEBSITE:

find-data-leak

Stack count data uploaded to domains:

# XQL Query to find domains with most data uploaded to them
dataset = xdr_data
# | filter event_type = NETWORK and (event_sub_type = NETWORK_DATAGRAM_STATISTICS or event_sub_type = NETWORK_STREAM_STATISTICS)
| filter event_type = NETWORK
# Filter out internal destinations =====
| filter action_remote_ip != "10.*" and action_remote_ip != "192.168.*"
| alter rfc1918_172 = incidr(action_remote_ip, "172.16.0.0/12")
| filter rfc1918_172 = false
# ======================================
| alter parsed_domain = arrayindex(regextract(action_external_hostname, "(?i)([a-zA-Z0-9_-]+(?:\.(?:co\.uk|ac\.za|org\.au)|\.\w+)$)"), 0) // ?i for case insensitivity
# Optional, comment out following line to remove/aggregate non-domain results
# | replacenull parsed_domain = action_remote_ip
# | fields agent_hostname, action_local_ip, action_remote_ip, action_external_hostname, regex_domain, action_upload
| fields parsed_domain, action_upload, action_local_ip, event_type, event_sub_type
| comp sum(action_upload) as total_uploaded, count_distinct(action_local_ip) as distinct_src_ips by parsed_domain
| sort desc total_uploaded

find-rogue-auths

Looking for failed authentication events and sorting with the fields to include username + source ip.

dataset = xdr_data // Using the xdr dataset
 | filter event_type = WINDOWS_EVENT_LOG and action_evtlog_event_id = 4625 and agent_hostname = "NHLA07414" // Filtering by windows event log and id 4625
 | alter User_Name =arrayindex(regextract(action_evtlog_message, "Account For Which Logon Failed:\r\n.*\r\n.*Account Name:.*?(\w.*)\r\n"),0), Logon_Type = arrayindex(regextract(action_evtlog_message, "Logon Type:.*?(\d+)\r\n"),0), Failure_Reason = arrayindex(regextract(action_evtlog_message,"Failure Reason:.*?(\w.*)\r\n"),0), Domain = arrayindex(regextract(action_evtlog_message, "Account For Which Logon Failed:\r\n.*\r\n.*.*\r\n.*Account Domain:.*?(\w.*?)\r\n"),0), Source_IP = arrayindex(regextract(action_evtlog_message, "Source Network Address:.*?(\d+\.\d+\.\d+\.\d+)\r\n"),0), Caller_Process_Name = arrayindex(regextract(action_evtlog_message, "Caller Process Name:.*?(\w.*)\r\n"),0), Host_Name = arrayindex(regextract(action_evtlog_message, "Workstation Name:.*?(\w.*)\r\n"),0) // Using regextract to get just a part of the full event log message into an array, then using arrayindex to take the first item in the array
 | dedup User_Name, Source_IP by asc _time
 | fields User_Name, Source_IP

find-rogue-schtasks

Executing scheduled task once on a specific time.

# Adversaries often use this technique to execute dropped payload
dataset = xdr_data // Using the xdr dataset
 | filter event_type = PROCESS and event_sub_type = PROCESS_START and (action_process_image_command_line ~= "(-|\/)sc" and action_process_image_command_line ~= "(-|\/)st" and action_process_image_command_line contains "once" and action_process_image_command_line ~= "(-|\/)tn" and action_process_image_command_line ~= "(-|\/)tr") // Construct commandline indicative of scheduled task set to once on a specific time, usually used to execute a dropped payload
 | fields event_id,agent_hostname,action_process_image_name as Process_Name,action_process_image_command_line as Process_Command_Line  // Selecting the process command line, name, event id and host name

find-rogue-schtasks2

Use RPC call artifacts to detect scheduled tasks remotely created from another host:

dataset = xdr_data
| filter event_type = RPC_CALL and action_rpc_func_name = "SchRpcRegisterTask" and causality_actor_remote_pipe_name = "\Device\NamedPipe\ntsvcs"
| alter task_command_parsed = arrayindex(regextract(action_rpc_func_str_call_fields, "<Command>(.*)</Command>"), 0)
| alter task_arguments_parsed = arrayindex(regextract(action_rpc_func_str_call_fields, "<Arguments>(.*)</Arguments>"), 0)
| alter task_userid_parsed = arrayindex(regextract(action_rpc_func_str_call_fields, "<UserId>(.*)</UserId>"), 0)
| alter task_remote_ip_parsed = causality_actor_remote_ip
| fields agent_hostname, agent_ip_addresses, actor_effective_username, action_rpc_func_name, task_command_parsed, task_arguments_parsed, task_userid_parsed, task_remote_ip_parsed, action_rpc_func_str_call_fields, event_type, event_sub_type

find-rogue-dll

# DLL file was written to ‘Windows’ directory by an injected process or over the network that been seen on less than 10 machines in the network.
dataset = xdr_data // Using the xdr dataset
| filter event_type = FILE and event_sub_type in (FILE_CREATE_NEW, FILE_WRITE, FILE_RENAME) and action_file_extension = "dll" and ((actor_process_is_special = 1 and action_file_remote_ip != null) or actor_is_injected_thread = true) and actor_process_image_name != "TrustedInstaller.exe" and action_file_path ~= "\\(w|W)indows\\"
| fields event_id,agent_hostname, action_file_name as file_name, action_file_path as file_path, action_file_sha256 as file_sha,actor_process_image_name as process_name ,actor_process_image_path as process_path, actor_process_image_sha256 as process_sha256, actor_process_image_command_line as process_cmd, action_file_remote_ip
| comp count(agent_hostname) as counter by file_name, file_sha ,process_name
| filter counter < 10

find-wpad-attack

WPAD to External IP addresses

# Detect and aggregate wpad activity going to external IP addresses.
config case_sensitive = false
| dataset = xdr_data
| filter event_type = NETWORK and action_external_hostname = "wpad.*"
| filter action_external_hostname ~= "^wpad[.].*"
| filter  action_remote_ip != "10.*" and action_remote_ip != "192.168.*"
| alter rfc1918_172 = incidr(action_remote_ip, "172.16.0.0/12")
| filter rfc1918_172 = false
| comp count(event_timestamp) as network_event_count, count_distinct(agent_hostname) as distinct_hosts by action_remote_ip, action_external_hostname
