siem / splunk / visualization / network scanning

Last update:

Port scanning can be efficiently visualized with the app available here.

For this visualization use-case, here are few concerns about :

  • hardware ressources - as the parallel coordinate visualizer is CPU consuming, you might use it with a restricted timespan.
  • network design - depending on your network design / IP plan, you may select the appropriate query below / change the IP subnets

Dashboard with dropdown location + timepicker

Find the PortScanViz XML dashboard here based on search queries below.

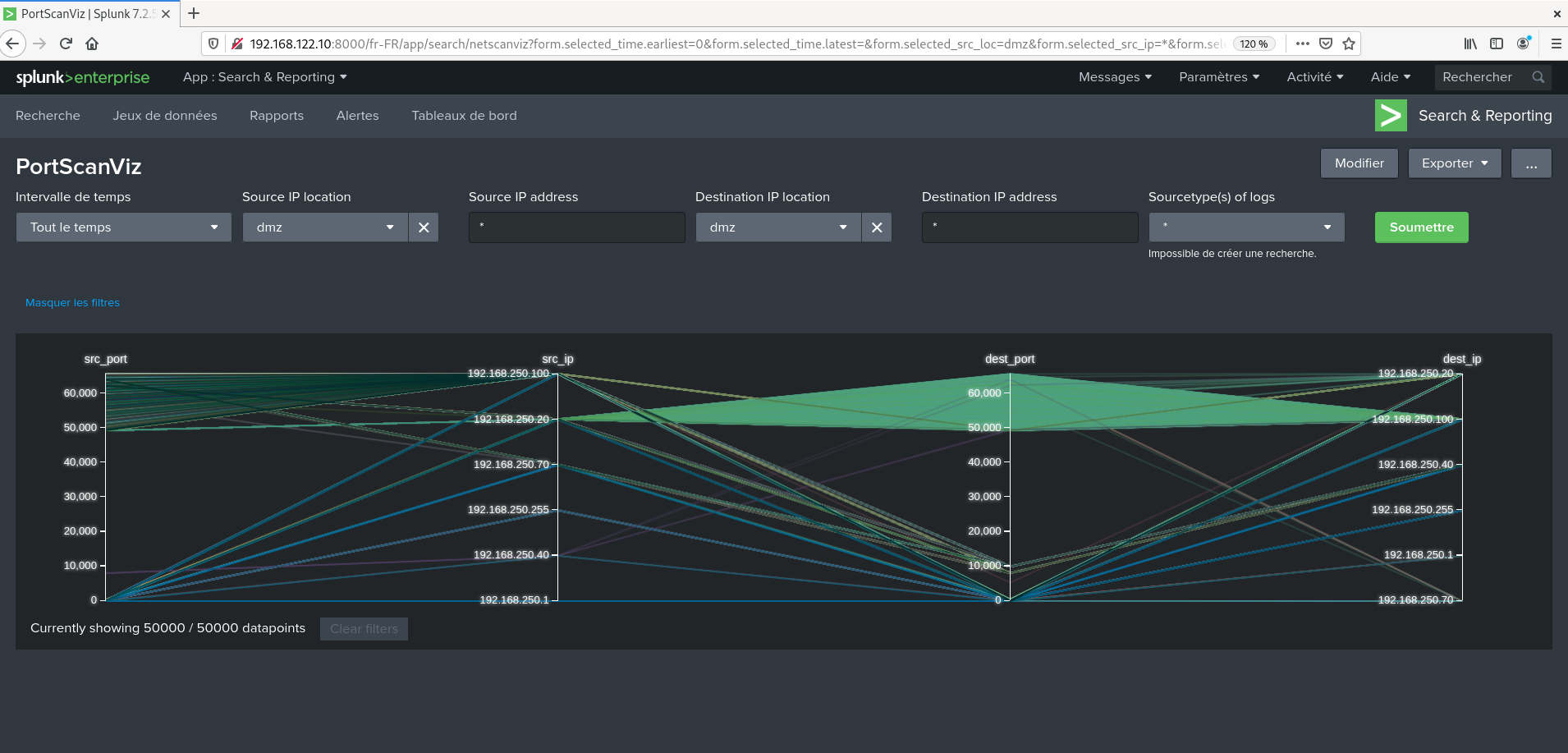

The picture shows up a port scan from 192.168.250.20 to 192.168.250.100.

.

Note: this dashboard MAY be optimized to take in charge :

  • multicast subnets
  • IPv6 subnets
  • instead of using the cidrmatch function, you may enrich IP fields with its location at the idex-time

Search query to visualize Port Scans - without a DMZ subnet

sourcetype="stream:tcp"
| search src_ip=*
| eval isSrcIP=if(cidrmatch("192.168.0.0/16",src_ip), "local", "external")
| eval isDestIP=if(cidrmatch("192.168.0.0/16",dest_ip), "local", "external")
| where isSrcIP = "external" AND isDestIP = "local"
#| where isSrcIP = "local" AND isDestIP = "local"
| table src_ip, src_port, dest_ip, dest_port

Search query to visualize Port Scans - with a DMZ subnet

sourcetype="stream:tcp"
| search src_ip=*
| eval isSrcIP=if(cidrmatch("192.168.69.0/24",src_ip), "local", if(cidrmatch("192.168.250.0/24",src_ip), "dmz", "external"))
| eval isDestIP=if(cidrmatch("192.168.69.0/24",dest_ip), "local", if(cidrmatch("192.168.250.0/24",dest_ip), "dmz", "external"))
| where isSrcIP = "external" AND isDestIP = "dmz"
| where isSrcIP = "external" AND isDestIP = "local"
| table src_ip, src_port, dest_ip, dest_port, isLocal

Note: on line 2 and line 3, putting the “192.168.0.0/16” before “192.168.250.0/24” will result to IP overlap error. In such case, the second cidrmatch() function will not be evaluated.
